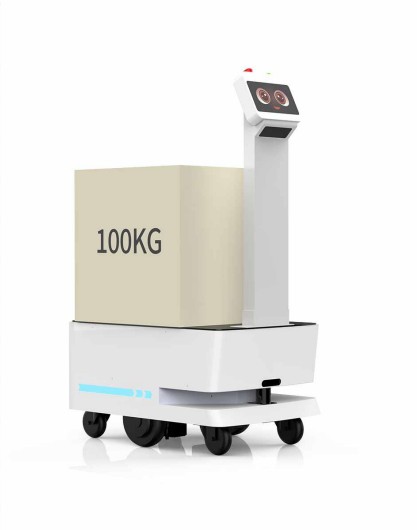

Big Dog Factory Delivery Robot
Laser navigation, 3D camera, obstacle avoidance, lift/door control, multi-robot support.
Big Dog Factory Delivery Robot
Big Dog factory delivery robot, 100KG large load capacity, 3D camera, active obstacle avoidance, laser navigation, no need to paste the code, central scheduling system, multi-machine collaboration, orderly operation, support for remote one-key call, support for getting on and off the lift, automatic control of the electric door, to meet the needs of a variety of complex scenarios under the use of demand.

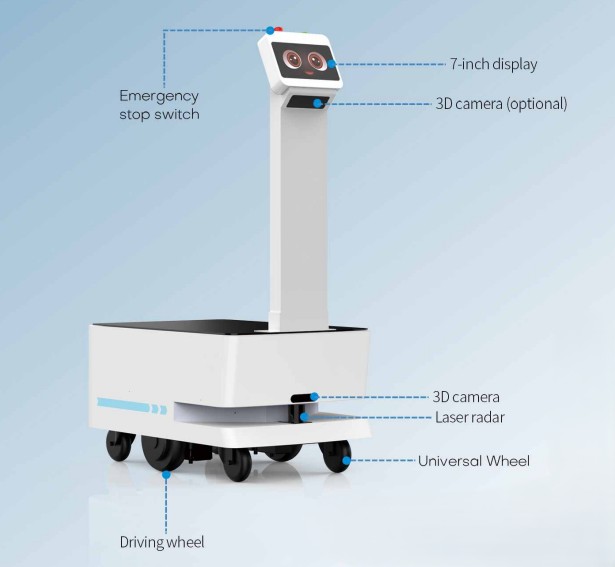

Big Dog Delivery Robot Features
100KG Load Capacity
Supports extra-large loads for a wider range of applications.
3D Camera & Laser Radar
Front-facing 3D cameras and laser radar ensure real-time obstacle awareness.
Autonomous Dispatch
Smart scheduling system with multi-robot collaboration for smooth operation.
Lift Integration
Supports autonomous elevator access to perform cross-floor deliveries.
Active Obstacle Avoidance
AI-powered navigation to actively avoid dynamic and static obstacles.
Specifications
| Applicable Scene | Products are widely used in factory workshops, libraries, hazardous locations, logistics and storage, special industries |
| Product Size | 704mm(L)x470mm(W)x1148mm(H) |
| Maximum Load Capacity | 100KG |
| Endurance | 12h fully loaded, 22h unloaded |
| Product Weight | About 55KG |
| Charging Time | About 6h |
| Travel Speed | 0.1–1m/s |
| Navigation Accuracy | ±10cm |
| Product Material | Sheet metal |
| Gyroscope | Single-axis gyroscope |
| Motor Drive | 5.5" hub motor |
| Adapters | Input: AC110–240V 50–60HZ Output: 43.2V–5A |
| Charging Pile Parameters |
Overcurrent protection, intelligent power failure, output rated voltage: 43.2V DC Output rated current: 5A |
