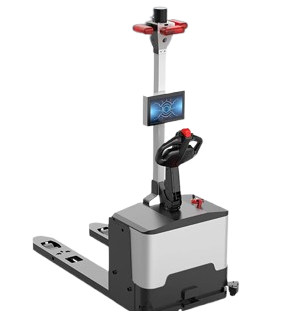

IRONHIDE AUTONOMOUS FORKLIFT

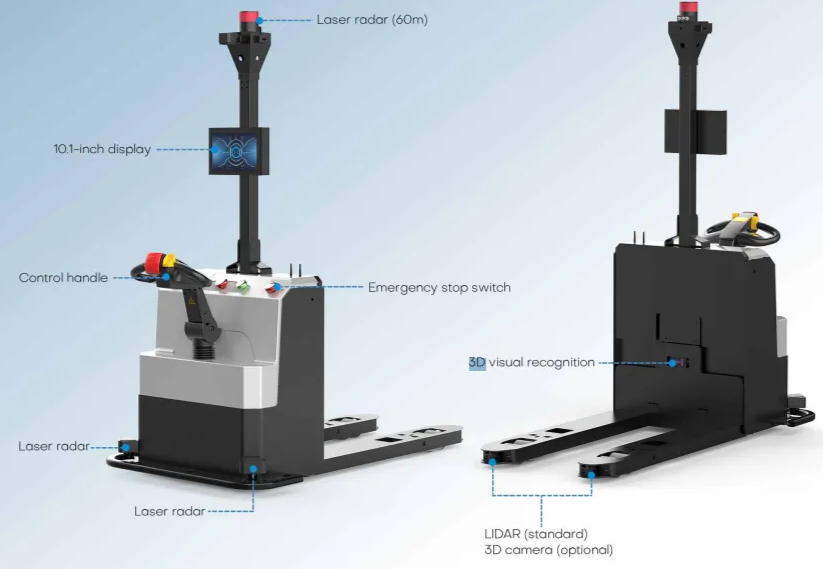

Ironhide - Autonomous forklift supporting a maximum load of 1.5T, laser SLAM navigation, no need for reflectors, with a variety of sensors such as 3D obstacle avoidance, safety edge of the touch for 360° three-dimensional safety protection, is the pallet cargo handling, material transport and other work needs of the right choice.

Self-navigation, no code required

3D camera, active avoidance

Two way traffic, no need to turn round

Powerful 1.5T load capacity

Quick Change & Extreme Charging

LiFePO4 battery

FOUR CORE FUNCTIONS

3D CAMERA SMART OBSTACLE AVOIDANCE

Intelligent sensing of obstacles

60M LONG RANGE SENSING

single-line laser radar (SLR)

1.5T LARGE CAPACITY

Meeting the needs of " and pallet transport

40,000m2 OF SCENE EASILY HANDLED

Standard x86 industrial mainframe, powerful computing

Rhino-Autonomous Features

1.5T Load Capacity

1.5 tonnes extra large load capacity, large load capacity, wider range of applications

Autonomous obstacle avoidance

3D camera + LIDAR, real-time perception of the surrounding dynamic environment

Extreme Charging

Quick release design, quick battery replacement, 1 hour full charge.

Ultra-large laser mapping

60m single line LiDAR, 40,000m2 indoor large environment use requirements

Specifications

Applicable Scene	Widely used in logistics, manufacturing, factory floors, ports, stations, airports, freight yards, warehouses, distribution centres and distribution centres.
Product Size	1715mm(L)x940mm(W)x2080mm(H)
Maximum Load Capacity	1500KG
Battery life	Full load range 6 hours, no load range 8 hours
Weight	About 380KG
Charging Time	About 1 hour
Display Size	10.1 inches
Navigation Accuracy	±10cm
Product material	sheet metal
Control method	electromagnetism
Charging method	battery removal replacement, direct charge
Battery capacity	48V/36AH Iron Phosphate Battery
Laser radar	60m1pcs, 20m3pcs
