Robot Prompt
Autonomous delivery robot Prompt 2021
S5.2 ISD 2021

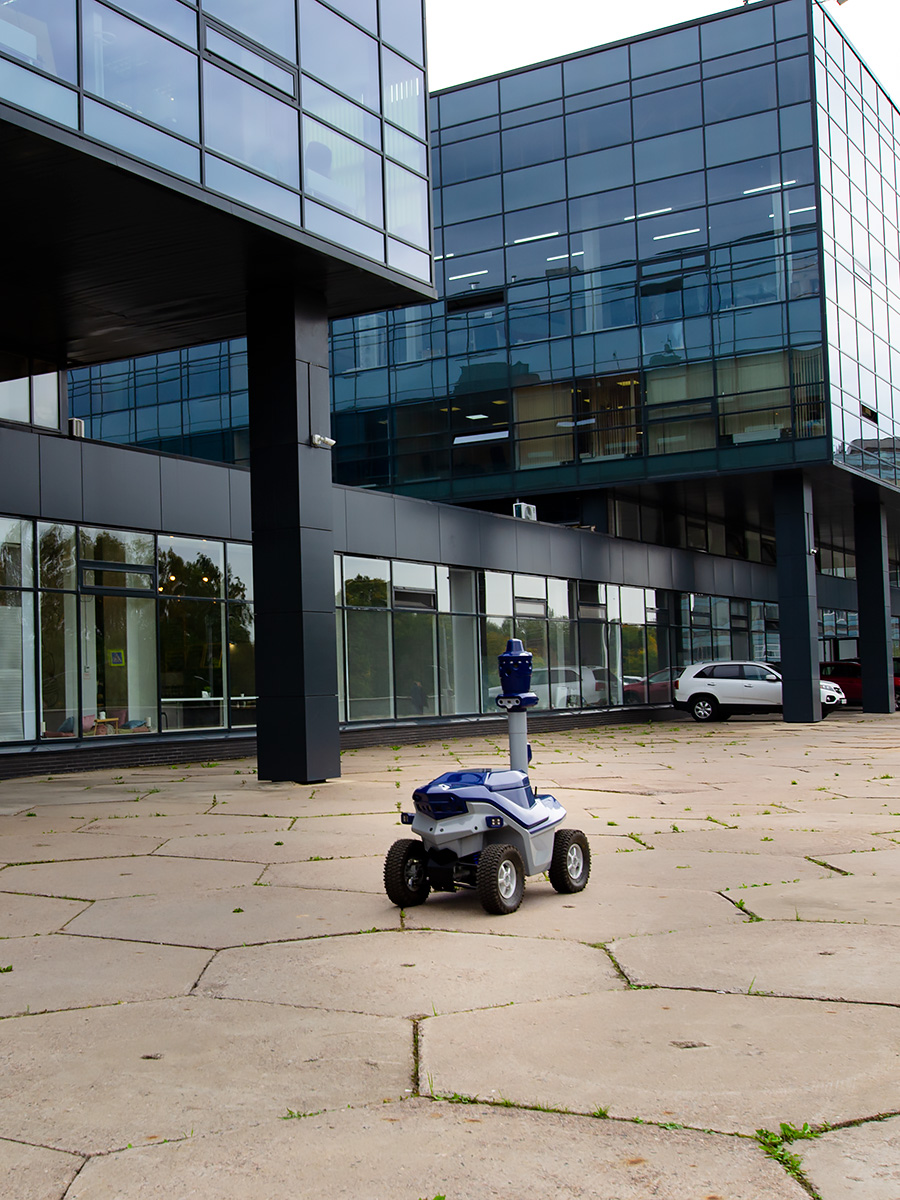

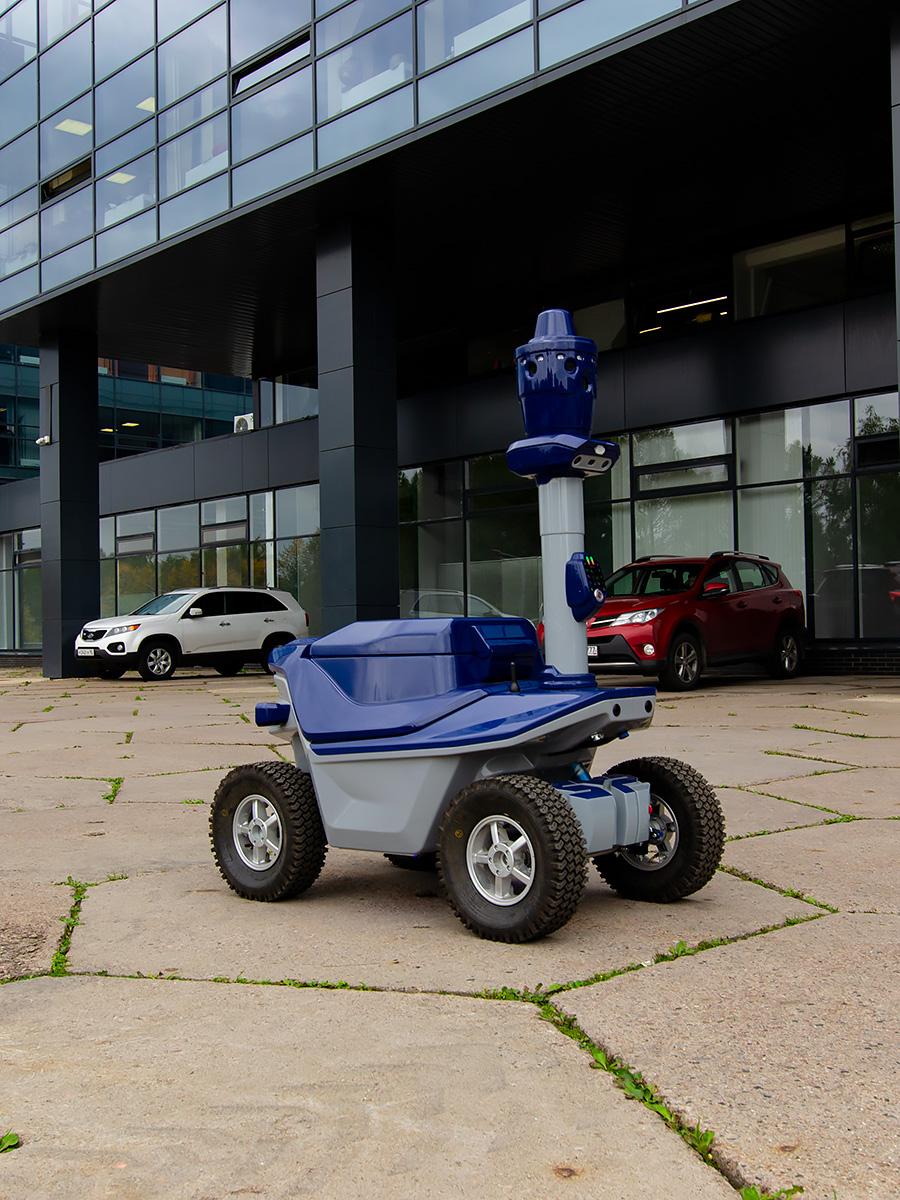

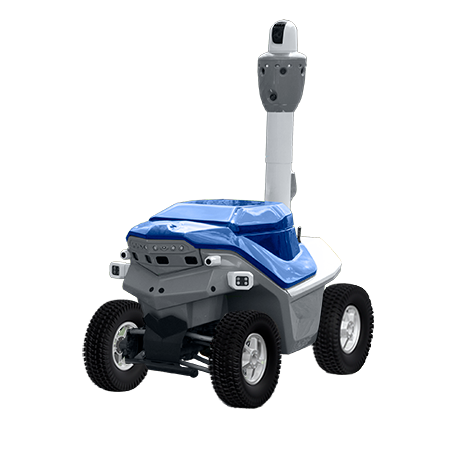

The Prompt robot performs the functions of transporting small parcels, video surveillance, and human recognition.
The robot is perfect for the delivery of small loads to dedicated areas on routes other than the path of car traffic. These can be the territories of factories, gated communities, or parks. The robot is not designed to move on the city’s public roads. The transport robot demonstrates the best results when driving on repetitive routes.
The robot is equipped with all-around surveillance cameras, which allows it to be used as a security robot. Video surveillance is carried out continuously throughout the entire operation time of the robot, during cargo transportation, awaiting for loading and unloading, or during charging. The robot’s batteries are charged automatically without operator intervention.
Self-driving parcel-delivery robots
The Prompt robot is equipped with automatic movement control and an obstacle avoidance system. Movement control is carried out by integrating information from machine vision systems and GPS. This approach allows the robot to move confidently along the route in conditions of unstable GPS reception. The robot is designed for driving on solid or gravel roads. Small curbs, bumps on the road, and puddles do not impede the robot’s movement. The robot can move along narrow pedestrian paths. The movement of the robot is accompanied by a stroboscopic light placed on the mast.
The robot is equipped with an audio intercom for communication with the operator. Upon receipt of the cargo, authorization can be made through voice communication with the operator, the recipient’s NFC tag, or the onboard system face recognition system.
The autonomous delivery robot is equipped with a safety system of maximum deviation from a predetermined route. The system allows you to restrict the movement of the robot when avoiding large obstacles that impede movement. Also to prevent the robots enter to the roads of movement of vehicles or heavy machinery.
Night security patrolling without outside lighting
Like all models of security robots manufactured by SMP Robotics. The new model, Argus, automatically moves along a pre-programmed patrol route, avoid obstacles, and returns to charge when the batteries are discharged. The security robot is charged automatically using the autonomous charging station included in the delivery package. The design of the security robot ensures its reliable movement on an uneven surface covered with rubble or small stones.
What makes it perfect for patrolling the perimeter in the territories of industrial enterprises. Video transmission from the robot, information about its location and operation of the systems is carried out via 4G or WiFi wireless communication channels. Video from CCTV cameras and alarm information is available for display in any stationary VMS supporting ONVIF protocol. The status and location of robots on patrol routes displayed in the web-based service for group monitoring of the operation of robots.
The Hershel robot is designed to detect people, cars, and other objects by using a smart thermal imaging surveillance system. The thermal imaging dual-spectrum camera that is placed on the robot is capable of working under the cover of darkness, and in conditions where there is condensate from fog and rain, with no external illumination. The combination of the robot’s mobility and long-range surveillance capability makes using Hershel ideal for addressing security related challenges in critical areas on guarded premises.
The robot is equipped with an advanced intelligence video analytics system that allows detecting and tracking objects. Using deep learning algorithms permits reliably detecting a person at distances up to 200 meters in complete darkness. The movement of the robot as part of a group is controlled by risk assessment algorithms with elements of artificial intelligence. The Hershel security robot allows substantially boosting the capabilities of a robot patrol group.
Specifications
| Technical specification of the security robot | PROMPT 2021 |
| Model | S5.2 ISD 2021 |
| Cargo space dimensions | 415×315×245mm |
| Maximum load weight | 18kg |
| Time for automatic closing/opening of the cargo hold | 30sec |
| Video surveillance cameras | Six HD panoramic cameras 1280×720 0.005lux |
| Embedded computer for video analysis | T9 |
| The distance of human detection | 25m |
| The distance of face detection at day, panoramic camera | 2m |
| Audio communication | IP Intercom with call button, sound notification |
| RF communication | 3/4G, Wi-Fi |
| Range | 32km |
| Speed | 4 – 6km/h |
| Automatic charger station | 48VDC 1kW |
| IP protection | IP65 |
| Temperature range | -25°C … +55°C |
| Weight with battery, without cargo | 148kg |
| Dimension | 1420х720х1620mm |
