Rhino-Autonomous
Rhino — 1.5T autonomous forklift with 2.5m lift, laser SLAM, and 360° safety for efficient, smart material handling.

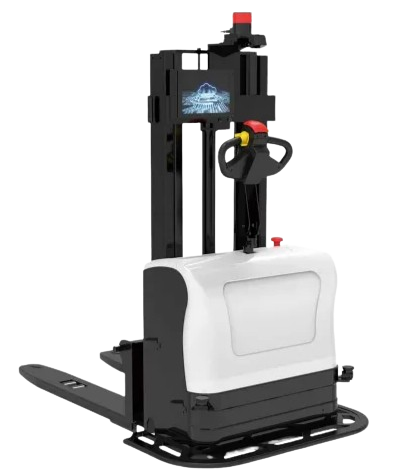

Rhino-Autonomous forklift trucks
Rhino-Autonomous forklift supporting a maximum load of 1.5T and 2.5m lifting height laser SLAM navigation, no need for reflectors, with a variety of sensors such as 3D obstacle avoidance, safety edge of the touch for 360° three-dimensional safety protection, is the pallet cargo handling, material transport and other work needs of the right choice.
Rhino-Autonomous Features
2.5m lifting height
Large load capacity and high lift help efficient logistics and simplify warehouse workflow
1.5T Load Capacity
1.5 tonnes extra large load capacity, large load capacity, wider range of applications
1.5m in-situ rotation radius
Ultra-small swivel radius for easy maneuvering in confined storage spaces

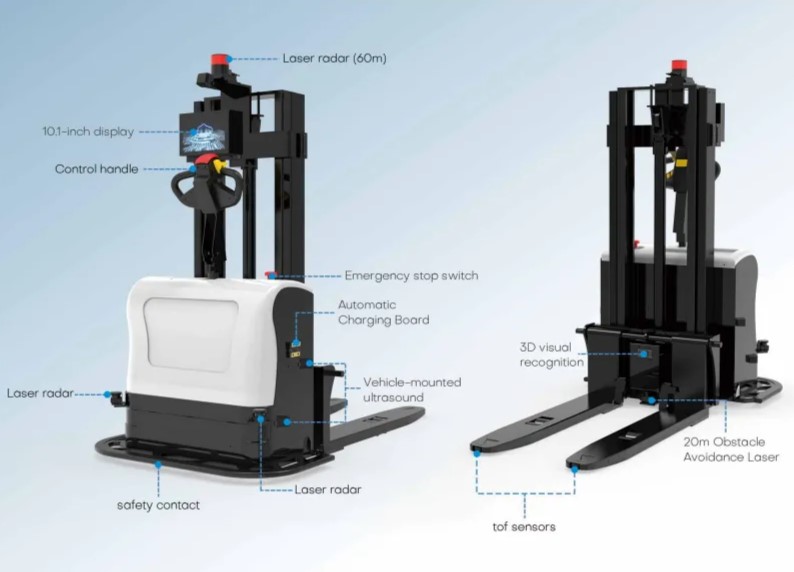

Autonomous obstacle avoidance
3D camera + LIDAR, real-time perception of the surrounding dynamic environment
Automatic Recharge
Automatic recharge + quick battery replacement, 1 hour full charge, realize 24 hours all-weather working condition
Ultra-large laser mapping
60m single line LiDAR, 40,000m2 indoor large environment use requirements
Specifications
| Applicable Scene | Widely used in logistics, manufacturing, factory floors, ports, stations, airports, freight yards, warehouses, distribution centres and distribution centres. |
| Product Size | 1715mm(L)x940mm(W)x2080mm(H) |
| Maximum Load Capacity | 1500KG |
| Battery life | Full load range 6 hours, no load range 8 hours |
| Weight | About 910KG |
| Charging Time | About 1 hour |
| Display Size | 10.1 inches |
| Navigation Accuracy | ±10cm |
| Fork lifting height | 2585mm |
| Operation Type | walking and automatic |
| Charging method | automatic charging |
| Battery capacity | 48V/36AH Iron Phosphate Battery |
| Laser radar | 60m*1pcs, 20m*3pcs |
